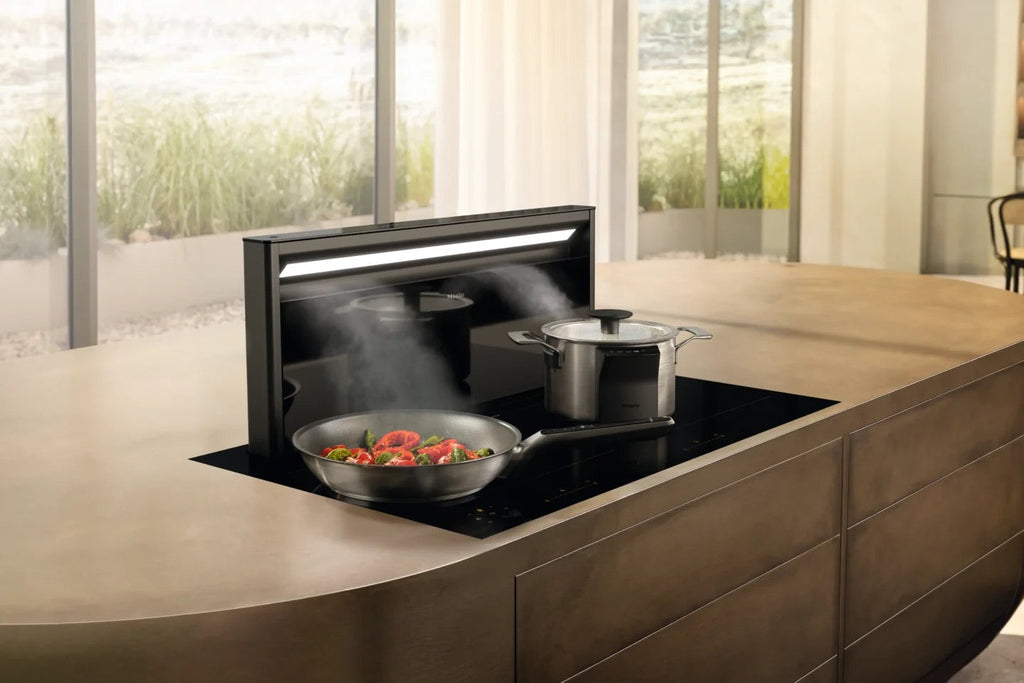

Miele DAD4370 Downdraft Extractor in Obsidian black
Miele DAD4370 Downdraft Extractor in Obsidian black
Key product information
Miele DAD4370 Downdraft Extractor in Obsidian black
The Miele DAD4370 is a downdraft extractor in Obsidian black.
Key features
- Black Glass Design
- Motorised retractable deflector plate - 916mm wide - Extraction + Easy recirculation mode installation with plug&play accessory set (to be purchased separately- DUU 600
- DUP 150) - Con@ctivity 3.0 - WiFi Enabled - 'A' energy rated - 'B' grease filter rating - LED lighting - installation with KM8575FL induction hob recommended *Not Suitable for installation with gas hobs
Product details
- Model: DAD4370
- Miele material number: 12963330
- EAN: 4002516975083
- Colour / finish: Obsidian black
- Manufacturer warranty: 2 yr
Specifications
| Model identifier | DAD 4370 Levantar |
|---|---|
| Manufacturer material number | 12963330 |
| EAN number | 4002516975083 |
| Downdraft extractor | Yes |
| Type of air guide | Can be retrofitted |
| Recirculation conversion kit (order separately) | DUU 600,DUP 150 |
| Active charcoal filter (order separately) | DKF 30-P / DKF 30-R |
| Colour | Obsidian black |
| Edge extraction | Yes |
| Miele@home | Yes |
| Con@ctivity | Personalised |
| Electronic controls | Yes |
| Touch-on-glass controls | Yes |
| Controls | SmartControl |
| Power levels (number without Booster level) | 3 |
| Booster levels | 2 |
| Run-on time 5/15 min. | Yes |
| Grease filter saturation indicator | Yes |
| Active charcoal filter saturation indicator | Yes |
| Motor-operated cooker hoods | Yes |
| Easy-to-clean canopy interior – CleanCover | Yes |
| AmbientLight | Yes |
| DynamicWhite | Yes |
| Alexa voice control | Yes |
| Google voice control | Yes |
| Push notifications | Yes |
| RemoteUpdate | Yes |
| Smart Home Integration | Yes |
| Energy efficiency class (A+++ to D) | A |
| Annual energy consumption in kWh/year | 41.1 |
| Fluid dynamic efficiency class | A |
| Lighting efficiency class | A |
| Grease filtering efficiency class | B |
| PowerManagement system | Yes |
| Number of dishwasher-safe stainless steel grease filters (10-ply) | 2 |
| Number x W | 1 x 12 W |
| Light intensity in Lx | 400 lx |
| Colour temperature in K | 3500 Kelvin |
| Dimmer function | Yes |
| Dual-action blower | Yes |
| Air throughput in Level 1 (m³/h) according to EN 61591 | 205 |
| Air throughput in Level 2 (m³/h) according to EN 61591 | 350 |
| Air throughput in Level 3 (m³/h) according to EN 61591 | 450 |
| Air throughput in Booster level 1 (m³/h) according to EN 61591 | 610 |
| Air throughput in Booster level 2 (m³/h) according to EN 61591 | 655 |
| Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 | 43 |
| Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 | 55 |
| Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 | 62 |
| Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 | 69 |
| Sound power in Booster level 2 (dB(A) re 1 pW) acc. to EN 60704-3 | 71 |
| Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 | 30 |
| Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 | 42 |
| Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 | 48 |
| Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 | 55 |
| Sound pressure in Booster level 2 (dB(A) re 20 µPa) acc. to EN 60704-2-13 | 57 |
| Safety shut-off | Yes |
| Single-ply safety glass (ESG) | Yes |
| Canopy dimensions (W x H x D) in mm | 916 x 708 x 171 |
| Overall hood height for extraction mode and external in mm | 1008–1288 |
| Overall height for recirculation mode cooker hoods in mm | 1008–1288 |
| Overall height for vented and external min. in mm | 1008 |
| Overall height for extraction mode and external mode cooker hoods max. in mm | 1288 |
| Overall height for recirculation min. in mm | 1008 |
| Overall height for recirculation mode cooker hoods max. in mm | 1288 |
| Canopy width in in. (mm) | 916 |
| Cut-out dimension in mm (width) with surface-mounted installation | 815 |
| Cut-out dimension in mm (depth) with surface-mounted installation | 106 |
| Cut-out dimension in mm (width) with flush-fit installation – internal | 815 |
| Cut-out dimension in mm (depth) with flush-fit installation – internal | 106 |
| Cut-out dimension in mm (width) with flush-fit installation – external | 920 |
| Cut-out dimension in mm (depth) with flush-fit installation – external | 124 |
| Canopy height in in. (mm) | 708 |
| Depth of hood canopy in in. (mm) | 171 |
| Installation on unit floor | Yes |
| Installation on floor | Yes |
| Min. base unit width in mm | 900 |
| Glass frame width in mm | 916 |
| Net weight in kg | 34 |
| Length of supply lead in m | 1.4 |
| Standard plug fitted | Yes |
| Total rated load in kW | 0.252 |
| Voltage in V | 230 |
| Fuse rating in A | 10 |
| Frequency in Hz | 50 |
| Number of phases | 1 |
| Diameter of extraction ducting connection in mm | 150 |
| Optimum combination with hob subject to availability | KM 8575 FL |
| Joint installation with hob in one cut-out | Yes |
| Flush-fit installation | Yes |
| Surface-mounted installation | Yes |
| Bottom exhaust duct | Yes |
| Longer appliance feet | Yes |
| Connection strip for combination with hob | Yes |
